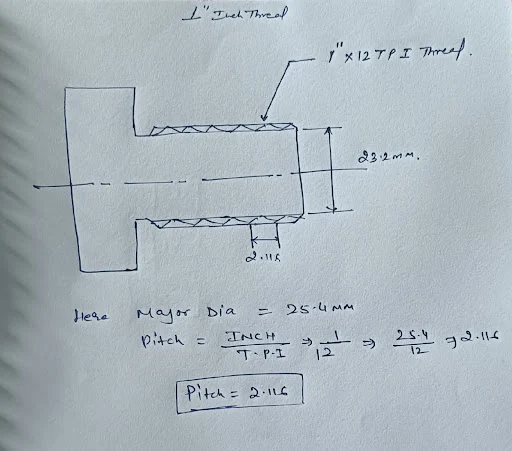

"1inch12 tpi " Thread by G76 canned cycle example
Doston aaj hum aapko batayenge ki kisi bhi part me 1inch ki thread kese karte hai
G76 g code ki sahayta se
G76 ka use karke 1 inch ki thread ka program in Hindi
Programme Format -
G76 P010060 Q50 R20;
G76 X23.20 Z- 25.4 P1400 Q50 F2.116;
G0 X100.Z100.
Here F2.116 is thread pitch
P1400 - thread depth
Q50 - depth of cut in 1 pass means 50 microns
Z- 25.40 is thread length
P0010060 - 1 last pass
60 is thread angle
Thanks for watching
